Feature:
Light source: SHARP Mini-Zenigata COB LED
CRI 82
70-85LM/W
3 years warranty time

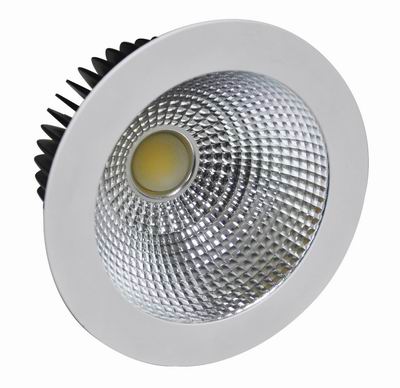

COB LED Downlight, SHARP Mini-zenigate
Specification:
Input Voltage: AC85-265V
Power consumption: 7W/9W/12W/15W/24W/36W
Color of housing: White
Rated life: 35,000 hours
Beam angle: 90°
Operating temperature: -20°C~60°C
Storage temperature: -30°C~80°C
Certificate: CE/RoHS
| Factory Item |
Power |
Colour Temp. |
Luminous Flux |
CRI |
Size |
Cut out
(mm) |
| HD2825-7W-3000K |
7W |
3000K |
440LM |
82 |
Ф2.5 |
Ф92mm |
| HD2825-7W-4000K |
7W |
4000K |
460LM |
78 |
Ф2.5 |
Ф92mm |
| HD2825-7W-6500K |
7W |
6500K |
490LM |
75 |
Ф2.5 |
Ф92mm |
| HD2825-9W-3000K |
9W |
3000K |
560LM |
82 |
Ф2.5 |
Ф92mm |
| HD2825-9W-4000K |
9W |
4000K |
580LM |
78 |
Ф2.5 |
Ф92mm |
| HD2825-9W-6500K |
9W |
6500K |
610LM |
75 |
Ф2.5 |
Ф92mm |
| HD2830-12W-3000K |
12W |
3000K |
730LM |
82 |
Ф3.0 |
Ф102mm |
| HD2830-12W-4000K |
12W |
4000K |
760LM |
78 |
Ф3.0 |
Ф102mm |
| HD2830-12W-6500K |
12W |
6500K |
800LM |
75 |
Ф3.0 |
Ф102mm |
| HD2840-15W-3000K |
15W |
3000K |
880LM |
82 |
Ф4.0 |
Ф122mm |
| HD2840-15W-4000K |
15W |
4000K |
920LM |
78 |
Ф4.0 |
Ф122mm |
| HD2840-15W-6500K |
15W |
6500K |
960LM |
75 |
Ф4.0 |
Ф122mm |
| HD2850-18W-3000K |
18W |
3000K |
1100LM |
82 |
Ф5.0 |
Ф152mm |
| HD2850-18W-4000K |
18W |
4000K |
1150LM |
78 |
Ф5.0 |
Ф152mm |
| HD2850-18W-6500K |
18W |
6500K |
1200LM |
75 |
Ф5.0 |
Ф152mm |
| HD2860-24W-3000K |
24W |
3000K |
1500LM |
82 |
Ф6.0 |
162mm |
| HD2860-24W-4000K |
24W |
4000K |
1550LM |
78 |
Ф6.0 |
162mm |
| HD2860-24W-6500K |
24W |
6500K |
1600LM |
75 |
Ф6.0 |
162mm |
| HD2880-36W-3000K |
36W |
3000K |
2200LM |
82 |
Ф8.0 |
202mm |
| HD2880-36W-4000K |
36W |
4000K |
2250LM |
78 |
Ф8.0 |
202mm |
| HD2880-36W-6500K |
36W |
6500K |
2300LM |
75 |
Ф8.0 |
202mm |
