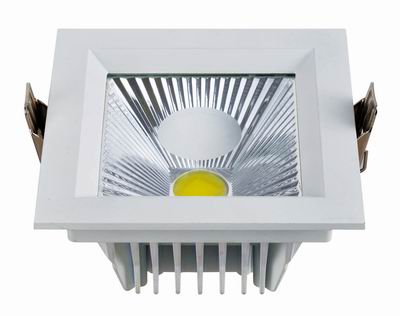

Square COB Led Downlight
Feature:
Light source COB LED
CRI>75
Lumen Output>80LM/W
3 years warranty time
COB LED Downlight
Specification:
Input Voltage: AC85-265V
Power consumption: 10W/15W/20W
Color of housing: White
Rated life: 35,000 hours
Beam angle: 90°
Operating temperature: -20°C~60°C
Storage temperature: -30°C~80°C
Certificate: CE/RoHS
| Factory Item |
Power |
Colour Temp. |
Luminous Flux |
CRI |
Size |
Cut out
(mm) |
| HD09-10W |
10W |
3000K
-
6500K |
>80LM/W |
>75 |
L110mm*H75mm |
98*98mm |
| HD09-15W |
15W |
>80LM/W |
>75 |
L150mm*H84mm |
138*138mm |
| HD09-20W |
20W |
>80LM/W |
>75 |
L180mm*H92mm |
165*165mm |
|
| |
|
 |
|
|
|
