Features:
Automatic switching on through physical motion
Automatic dimming down during the standy time
Automatic day/night recognition
Induction distance: 5-10m
Up to 90% energy saving compare with CFL.
Easy to installation and use
Low operating and energy cost
Long life time
Application range:
It is widely used in Corridor, Parking Garage,Warehouse,Shops and so on.
Specification:
| Factory Item |
Description |
Power |
Colour Temp. |
Luminous Flux |
CRI |
Beam Angle |
| HT-RD60 |
Input Voltage: AC100~265V
Power factor: >0.9
Material: Aluminum+PC
Induction distance: 5-10m
Protection level: IP44
Lifespan>35,000H
Size: 26*600mm |
10W
Full Light Model
2W
Glimmers Model
|
3000K
4000K
6500K |
>850LM |
>75 |
120º |
| HT-RD120 |
Input Voltage: AC100~265V
Power factor: >0.9
Material: Aluminum+PC
Induction distance: 5-10m
Protection level: IP44
Lifespan>35,000H
Size: 26*1200mm |
18W
Full Light Model
4W
Glimmers Model
|
3000K
4000K
6500K |
>1600LM |
>75 |
120º |
| HT-RD150 |
Input Voltage: AC100~265V
Power factor: >0.9
Material: Aluminum+PC
Induction distance: 5-10m
Protection level: IP44
Lifespan>35,000H
Size: 26*1500mm |
24W
Full Light Model
5W
Glimmers Model
|
3000K
4000K
6500K |
>2100LM |
>75 |
120º |

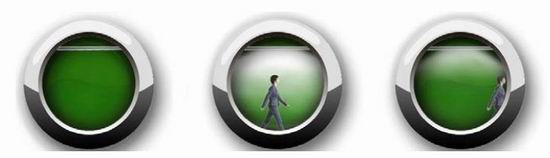

Working Mode: full light--glimmer
Full light when moving car or people come in/out, transfer to 3W work power after 20 seconds when car/people left.

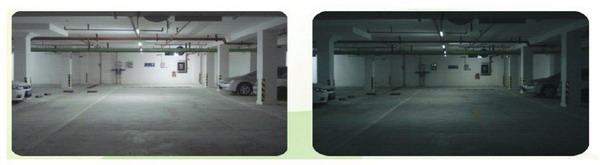

Spot Real Measurement Effect:
Full Light Glimmer
Instruction of Wiring:

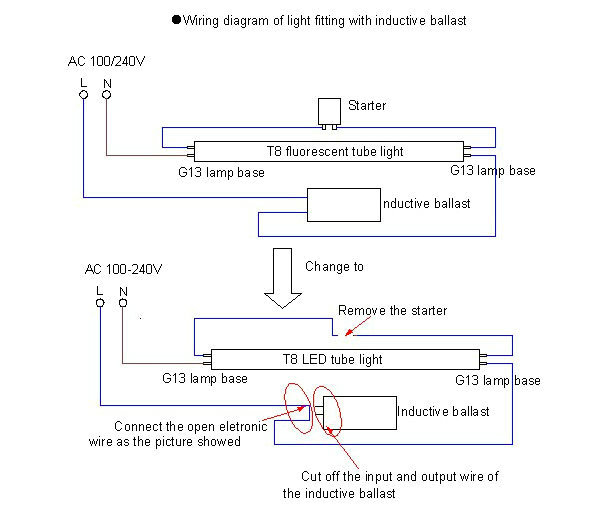

1. T8 Fluorescent Tube with Inductive Ballast
2. T8 Fluorescent Tube with Electronic Ballast
