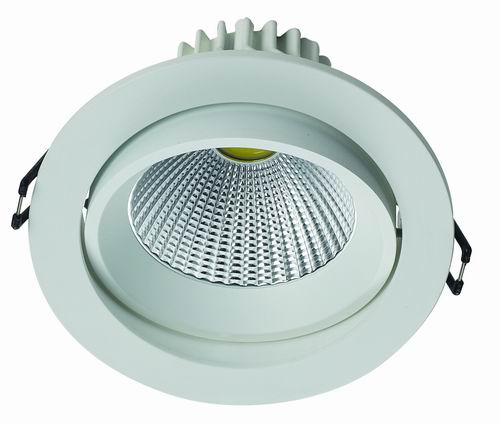

Beam Angle Adjustable COB Led Downlight
Features:
1. Life: 20 years (based on 5 hrs/day)
2. Lumens per Watt: 80-85
3. Dimmable
4. Lights instantly, omni-directional
5. Zero-Hg, glare light protection
Specifcation:
1. Input voltage: AC85-265V
2. Power Factor: >0.92
3. Light Source: COB LED
4. Working life:>30000Hrs
5. LED Colour:WW,NW,CW
6. Material: Aluminum
| Factory Item |
Power |
Colour Temp. |
Luminous Flux |
CRI |
Size |
Cut out
(mm) |
| HD313A-5W |
5W |
3000K
-
6500K |
>80LM/W |
>75 |
φ90*59mm |
Ф76mm |
| HD314A-10W |
10W |
>80LM/W |
>75 |
φ120*72mm |
Ф105mm |
| HD316A-15W |
15W |
>80LM/W |
>75 |
φ150 X H92 mm |
Ф140mm |
| HD317A-20W |
20W |
>80LM/W |
>75 |
φ180 X H103 mm |
Ф168mm |
